Measure tool for room planning in Lucidchart

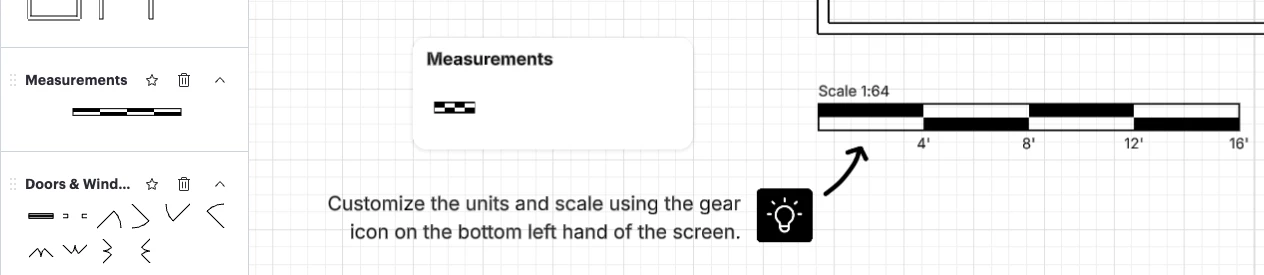

Thanks for posting! Please see our Floorplan Tools Help Center article to learn about the measurement tools we provide. If this does not fit your needs can you please reply and explain in more detail what you are trying to accomplish?

Hello

I saw this after googling around.  I design office floor plans for quoting furniture to customers.  I’m moving over from Visio 95 and it had a tool that I could drag to measure distance and give a number.

How I used that was say I had to put two desks or cubicles near each other in a given room.  I could use the Visio tool to click between the two objects and it would show a distance on the screen and printouts for the customers to see.  It would look something like:  |———- 4’————|

The only way I can figure how to do this is to drag another wall segment to the floor plan and explain that this wall is just there to show the space between these two things.  It gets a little confusing to the customer.

I know there is a scale but customers aren’t busting out their rulers and math skills to figure out a given distance.  I also know I can drop a line and give it a label with the distance but I have to drop a wall in first and drag it around to work out what that distance is first then remove the wall add the line add the text.

I used to be able to do this in a program that I still have the 3.5” floppies for it’s so old can I do this with a modern program?

Hi Bob thanks for continuing this thread. Unfortunately a tool for measuring distance is still unsupported in Lucidchart; I believe the best alternative to a wall is the workaround you described with the line. I definitely understand though how this would be a great improvement in efficiency and ease of use for you and your customers.

We’re very interested in your feedback and committed to continually improving our products. If you’re willing to share, we’d love to hear more details about your use case or what you’d like to see in this experience posted in the Product Feedback section of the community - from here, other users can upvote it and add details of their own.

For more information on how Lucid manages feedback via this community, take a look at this post.

I apologize for any inconvenience and thanks for your request!

Hi Micah

I can’t really think of any other feature at the moment I’ve only just started really getting into it though.  The measurement tool is a big one to me everything else I have had issue with was mostly just learning the different way of doing it Lucid Chart.  Overall I like that I can quickly bring together an office floor plan and demonstrate some concepts onsite with the customer (the measurement tool notwithstanding).  Like anything I can get lost in time putting together all the little details - but the fact that I can also makes the software nice as well.

I’ve earned that the Apple Pencil is a near must to use with the iPad app since my figures seem to want to tap on the wrong thing or drag the thing too far.  Which is fine by me since I already had one it gives me a good reason to use that pricy little thing.

Hi Bob thanks for the additional detail and feedback - super helpful! As you continue to work in Lucidchart we'd love to hear more about your experiences if there's anything else that you'd find helpful or if we can do anything to support your work.

When is this going to be a thing? The measurement tool is important to measure space between items

Hi @support_rvn, thanks for adding to this thread!

I’ve converted your post to an idea so that it’s visible to others within the Product Feedback section of the community - from here, they can upvote it and add details of their own. It has also been merged with the following post, so that all votes for both posts are added together:

Finally, for more information on how Lucid manages feedback via this community, take a look at this post. We appreciate your feedback!

Looks like this has been an ‘idea’ for a long time. A quick and easy measuring tool for designs is important so you can be assured to meet all rules and regulations. Is there a guide to performing this with the current tools available?

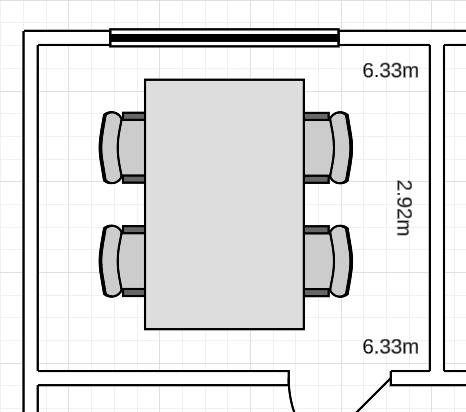

Hi @JamesR, thanks for checking in on this thread. Unfortunately, a measurement tool is still unsupported in Lucidchart, but we appreciate you letting us know why this is important to your work. While it’s not a perfect solution, you might find the automation wall measurements useful. If you enable this setting, Lucidchart will automatically display the length of any wall in your floor plan.

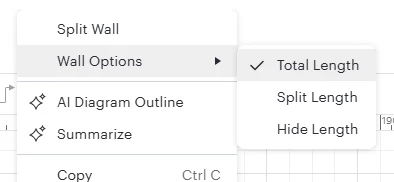

You can enable this by right-clicking on any wall and choosing Total length in the Wall Options menu:

I hope this helps! Let me know if you have additional questions.

It’s crazy you don’t have this. You aren’t serious about having a floorplan platform without a measurement tool. Unusable with out it. Nice try.

Hi ​@Teeples, thank you for adding to this thread with your thoughts and feedback on this. I apologize for any frustration here. Thank you for taking the time to let us know how important this is to you, I certainly understand why.
