Is it possible to realign or position where multiplicity labels appear in class diagrams? When I have a horizontal association and Add Multiplicities, they sometimes overlap the shape (UML class) border and are not so readable. See screenshot.
Idea
Can I reposition multiplicity labels in class diagrams?
+1Hi
Finally, for more information on how Lucid manages feedback via this community, take a look at this post:
Thank you for sharing you feedback and ideas in the community! Please let us know if you have any questions.
+24- Lucid Legend Level 10
Hi

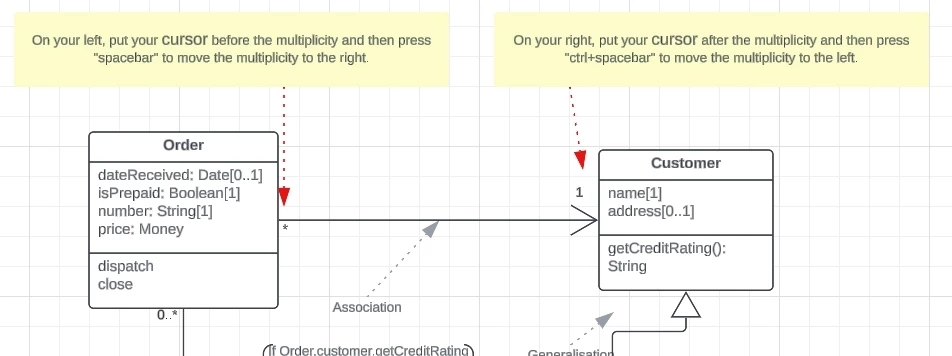

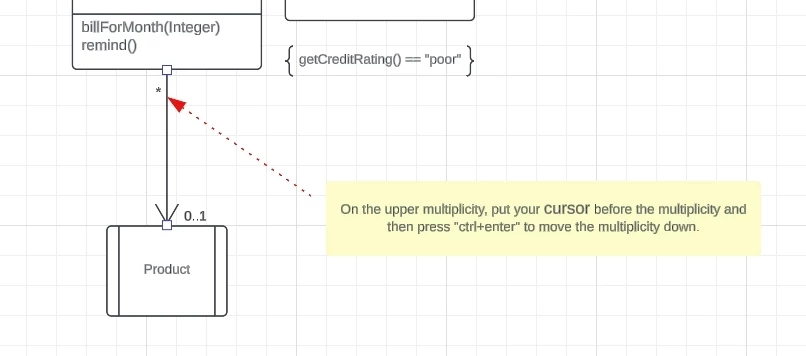

There is no built-in setting to automatically realign where multiplicity labels appear on class association lines.
Hope this helps - Happy to help further!!
Thank you very much and have a great one!
Warm regards
+15Hi
Finally, for more information on how Lucid manages feedback via this community, take a look at this post:
Thank you for sharing you feedback and ideas in the community! Please let us know if you have any questions.
+1I think this is a simple bug with the product. When multiplicity is added to an association and it has a horizontal orientation between two classes and it has a value of a single digit, such as 1, it ought to be legible on the diagram and not so close to the shape.
+15Hi
In the meantime, could you share a temporary Document Support PIN for an example document that demonstrates this issue? This will help us take a closer look at what’s going on. This PIN is safe to post in this thread because it is only accessible by members of the Lucid support staff. You can find steps for generating a Support PIN in this Help Center article.
I apologise for any disruption this may cause, and I will update this thread with any new information about this. Please follow along on this thread for updates, and post any additional questions or concerns below.
+15Thank you for sharing that document PIN,
Please don’t hesitate to let us know if you have any questions.
