Idea

Support arrowheads at both ends of connectors

Related products:Lucidchart

Forum|Forum|18 hours ago
August 26, 2026
3 replies
7 views

For software architecture, UML, SysML, interface and context diagrams it is often necessary to represent bidirectional relationships using a single connector with arrowheads at both ends.

Microsoft Visio has supported this for decades. The inability to independently configure start and end arrowheads significantly limits Lucidchart's usefulness for engineering and software architecture modelling.

Please allow independent configuration of arrow styles for both connector endpoints ASAP.

Lucidchart

Zuzia S

Lucid community team

Hi @Leif Johansen, thanks for posting in the Community!

Arrows on both endpoints are supported by Lucid.

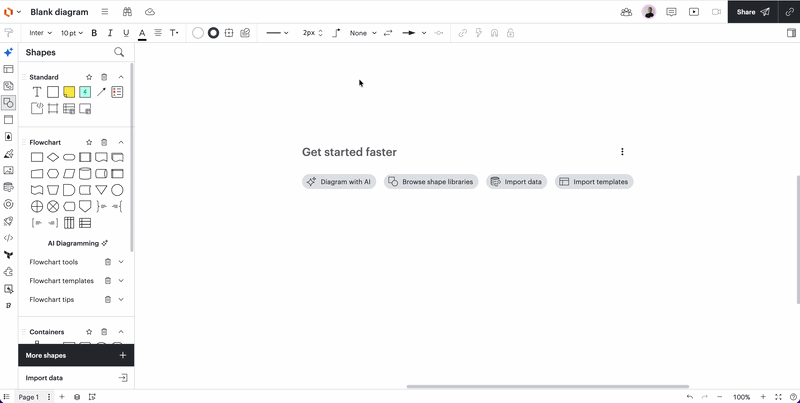

As a first step, you can either select the canvas if you want to set it as default, or select the line itself.

Then, click on the left “Endpoint” option to select an arrow style, which is initially set as “None”. As such.

Please let me know if this is helpful! Cheers

L

Leif JohansenAuthor

Thanks. Counter intuitive that a line has two endpoints, instead of a stat point and an endpoint ...

L

Leif JohansenAuthor

Thanks, now I am able to make arrows point in both directions.
But counter intuitive that a line has two endpoints, instead of a startpoint and an endpoint ...
